12″ active coaxial monitor – Put your boot on it!

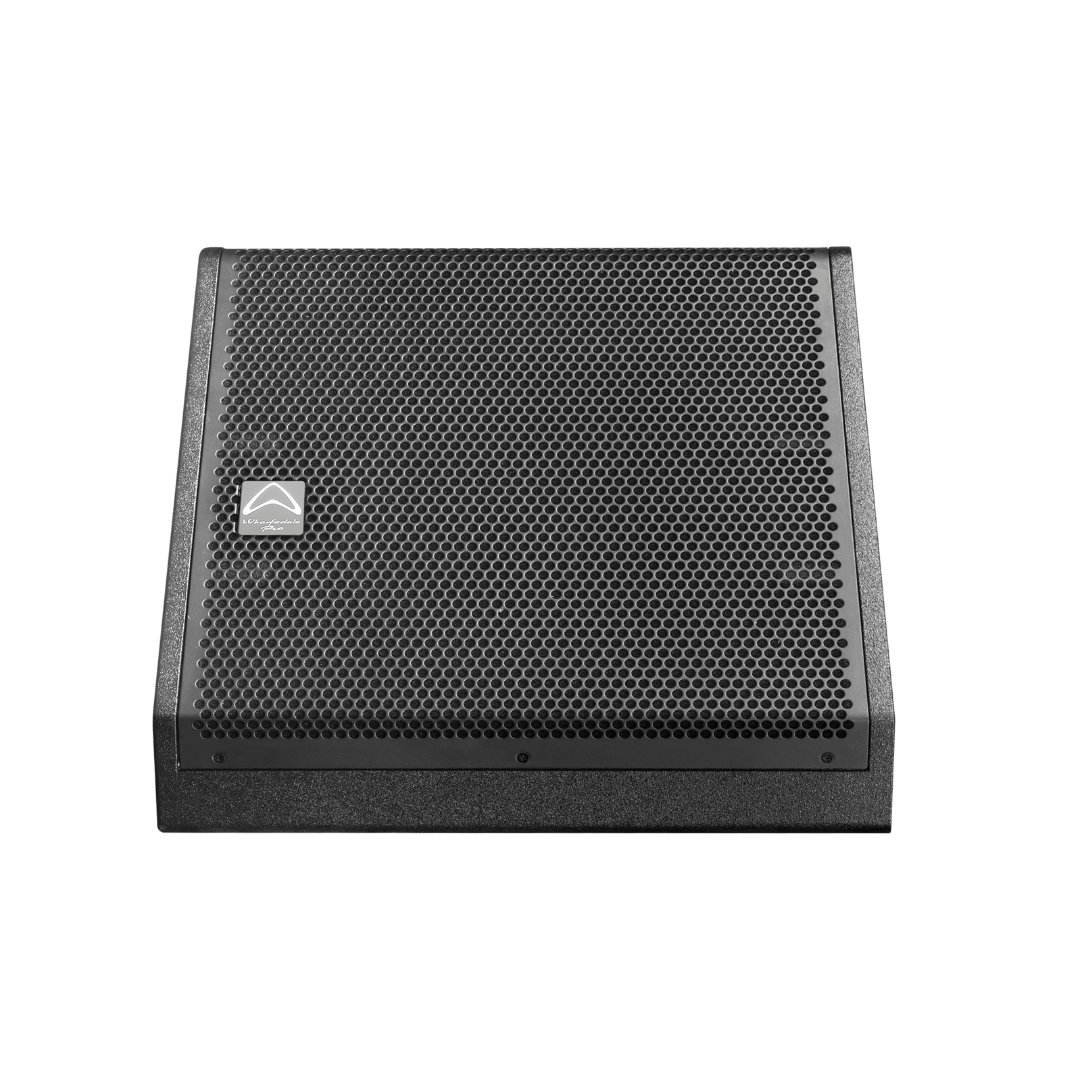

The Wharfedale Pro WDG-A12 Active Speaker is a 12″ active coaxial floor monitor from our WDG Series — combining power, precision, and flexibility for modern stage performance.
It features a Wharfedale Pro 12″ coaxial driver with a spherical waveguide, delivering smooth, controlled 70° coverage with natural clarity and low feedback. Internal DSP with 8 presets, including FIR filters, allows easy sound shaping for different stage environments. System control and fine-tuning can also be managed remotely via RS485 using our PRO=LINK software.
Designed for versatility, WDG-A12 can be deployed at 25° for far-field or 60° for near-field monitoring, while a 35 mm pole socket and optional WPB-7 or U-brackets make it suitable for installation or FOH use.
Finished in Tough-Tone paint for durability, WDG-A12 delivers 400 W continuous (800 W peak) power handling and a maximum SPL of 127 dB at 1 m — a rugged, adaptable solution for performers and engineers demanding precision and reliability on stage.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Floor Monitor |
| Configuration | Coaxial 2-way |
| System Continuous Power | 400 W |
| System Peak Power | 800 W |
| Max SPL @ 1m | 127 dB |
| Freq Range (-10 dB) | 40 Hz – 25 kHz |
| Freq Response (+/-3 dB) | 58 Hz – 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12″ |
| LF Voice Coil Size | 2.5″ |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 450 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 70° conical |
| Input Connector | 1 x Balanced XLR |
| Waveguide Type | Spherical |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 1 |
| Deployment | Flying, Ground, Pole, Wall Mount |
| Pole Mount | 35 mm |
| Rigging | Yes |
| M8 | 4 |
| Sensitivity 2.83v / 1m | 98 dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 1.9 kHz |
| Recommended HPF = BW 18 dB/OCT. | 40 Hz |
| Amplifier design | Class D |
| Preset list | WeDGe, WeDGe (No FIR), Coupled <2, Coupled <2 (No FIR), FOH, FOH (HPF), Lead Vocal and Custom |
| Active loudspeaker Input Impedance | 10 KΩ Balanced |
| Link Connector | pin XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Line output | Pin XLR |
| DSP Controls | HF Output EQ -3 dB to +3 dB |
| Main Power | 100-120 V~/200-240 V~,50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | Quick Start Guide |
| Unpacked – Height (mm) | 310 |
| Unpacked – Width Front (mm) | 540 |
| Unpacked – Width Rear (mm) | 540 |
| Unpacked – Depth (mm) | 472 |
| Packed – Height (mm) | 635 |
| Packed – Width Front (mm) | 560 |
| Packed – Width Rear (mm) | 560 |
| Packed – Depth (mm) | 398 |
| Weight – Nett (kg) | 20.2 |
| Weight – Gross (kg) | 23.2 |
