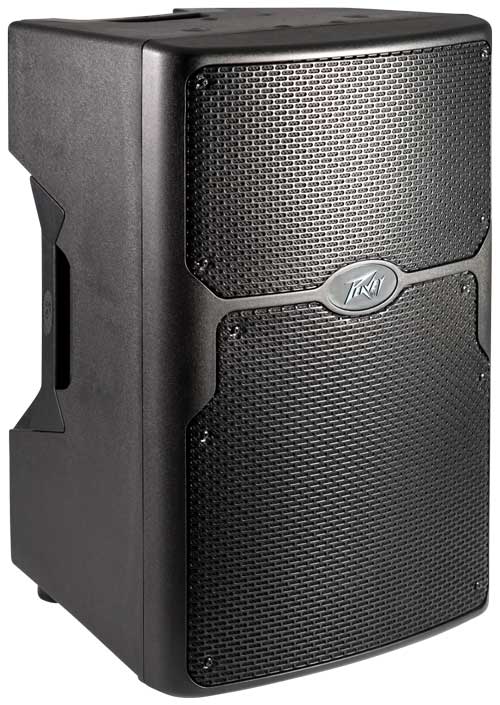

Peavey PVX™p 12 Bluetooth 12″ Two-Way Powered PA Speaker with Bluetooth Control

Description

The PVXp™ 12 Bluetooth® features a reliable bi-amped power section that provides a total of 980 Watts of peak dynamic power with DSP based compression and limiting. This enclosure features a 12” heavy-duty woofer with a 2-3/8″ voice coil and 50 ounce magnet, and the RX™ 14 compression driver with a 1.4″ Titanium diaphragm on a 100° horizontal x 50° vertical pattern asymmetrical horn.

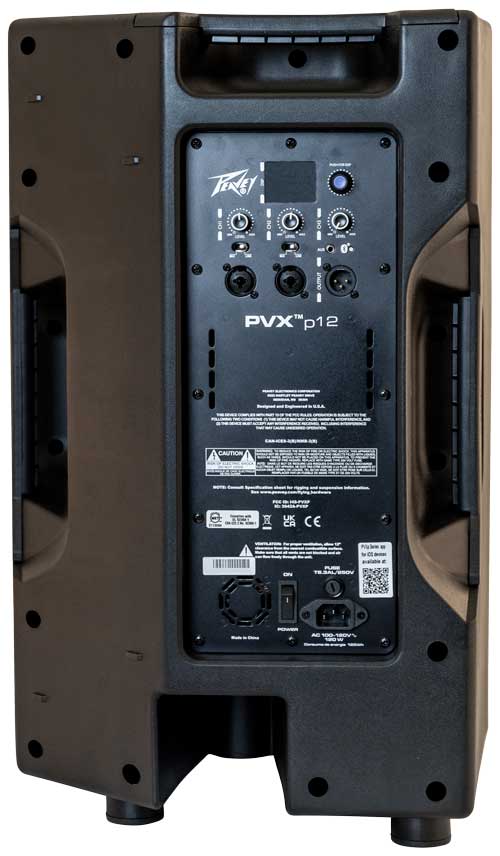

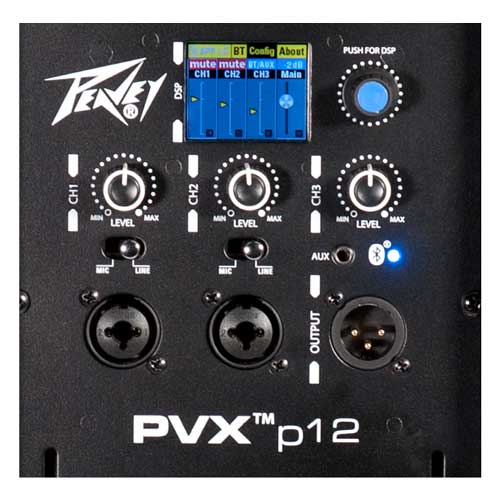

The PVXp 12 Bluetooth provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4″ input as well as a balanced XLR input.  A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8” AUX input jack. Each channel has an adjustable level control and a three-band EQ section.

There is a balanced output, a male XLR, that can feed the mixed signals from the three channels out to another component.

A front baffle LED indicator that can be set to light when power is on, and when the “soft-limiting” DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters are accessed via a one-knob selector or the iOS® Bluetooth Control App for iPhone® & iPad®.

Features PVXp 12 Bluetooth

• Two-way bi-amped sound reinforcement enclosure

• 12″ heavy-duty woofer with a 2-3/8″ voice coil & 50 oz. magnet

• RX 14 compression driver, with 1.4″ Titanium diaphragm

• Reliable fan-cooled power amps with DSP protection

• Total of 980 Watts peak dynamic power

• DSP control for precise crossover, EQ and limiting functions

• Bluetooth input is via a dedicated input channel

• Mix/Thru output is via a male XLR jack

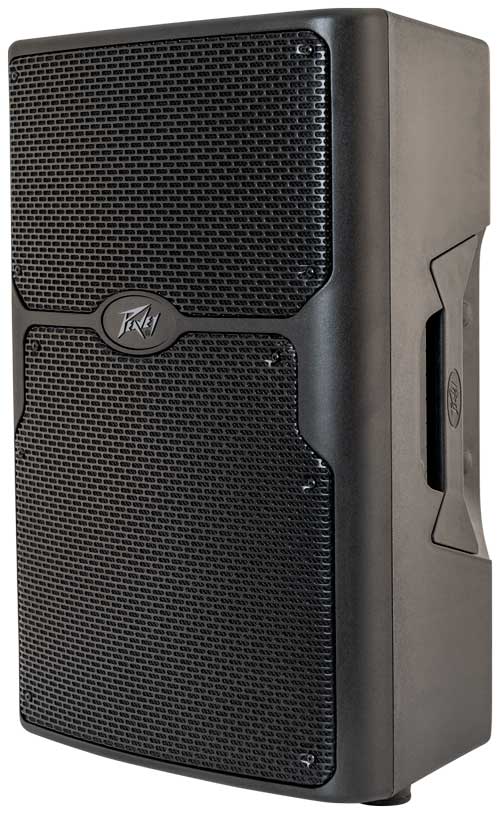

• Durable plastic injection-molded trapezoidal enclosure

• Extra angled section on right side allows floor monitor use

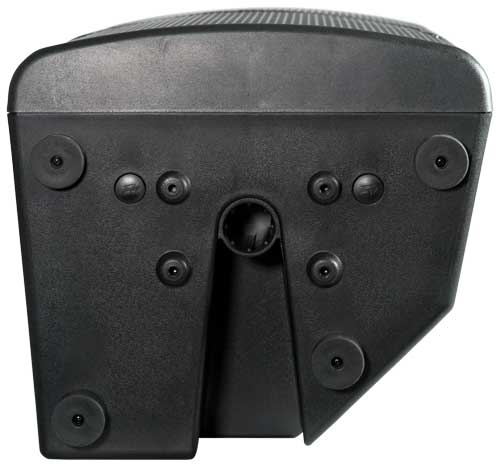

• Pole mount molded-in for 1-3/8” diameter poles

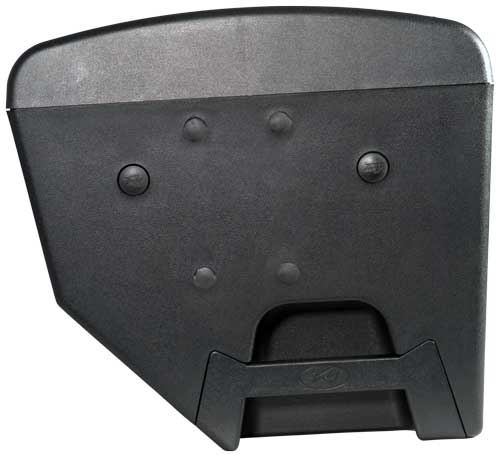

• Top and bottom flying point inserts

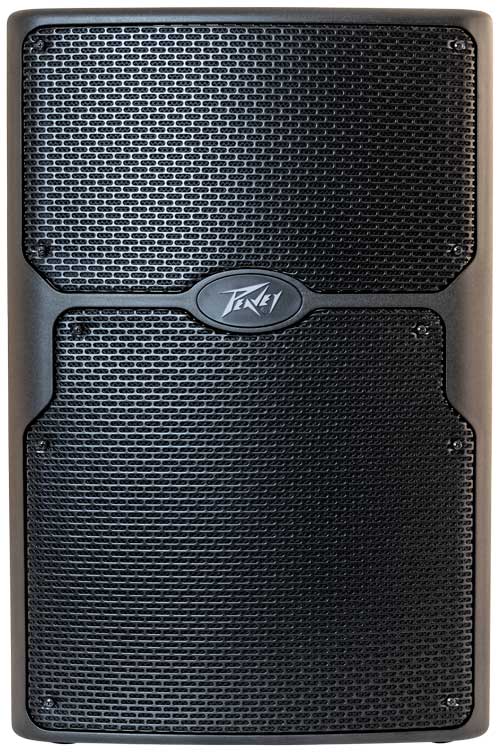

• Full-coverage heavy-duty perforated steel grilles, with powder coat finish

• DSP I/O is at 48 kHz and 24 bits, internal processing is 56 bit double-precision

• Peavey’s Quadratic Throat Waveguide™ technology, 100° by 50° coverage

• Asymmetrical horn aims the sound down 10°, at the audience, not over their heads

• Analog input is via a combo female XLR and 1/4” TRS phone jack with balanced input

• Three channels in total, two for analog, and one for Bluetooth or AUX input via a 1/8” jack

• Each channel has a level control and a 3-band EQ

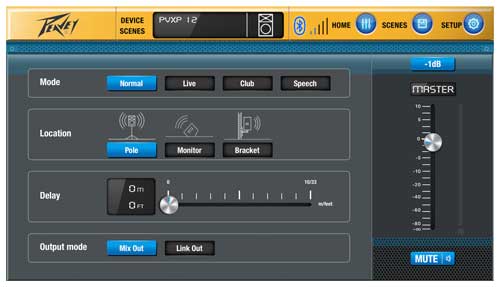

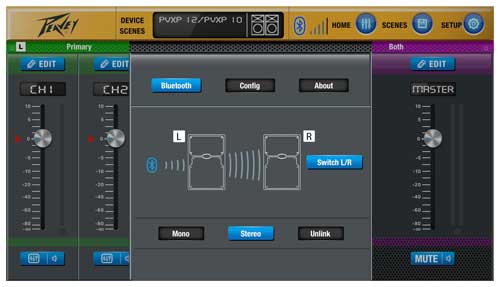

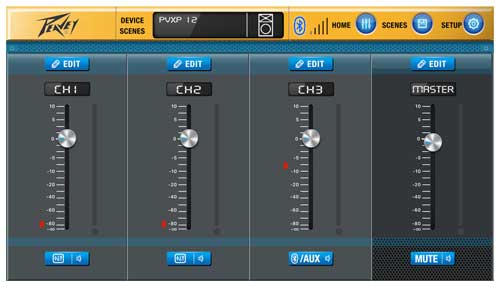

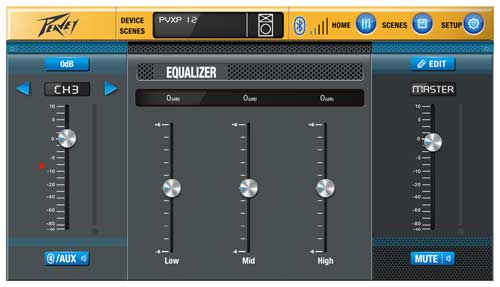

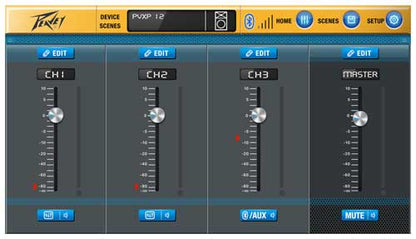

• iOS Bluetooth Control App for iPhone & iPad
