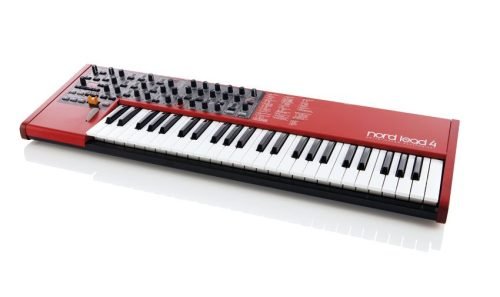

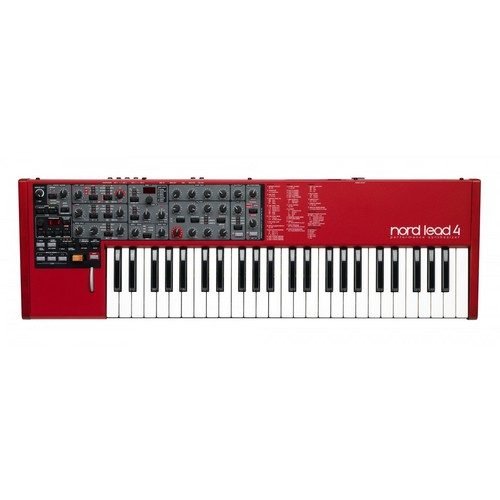

Nord Lead 4 Analog Modeling Synthesizer

The Nord Lead 4 Synthesizer is a versatile, 4-part multi-timbral virtual analog powerhouse designed to inspire musicians and producers alike. With its intuitive controls and cutting-edge sound design features, this synthesizer is perfect for crafting everything from soaring leads and intricate pads to punchy basses and dynamic effects.

Key Features

• 4-Part Multi-Timbral Performance: Play and layer up to four independent sounds simultaneously for rich, complex compositions. Each part has dedicated effects and filter controls, giving you ultimate flexibility.
• True Voice Unison: Create incredibly thick and wide sounds with multiple oscillators per voice, perfect for lush pads and aggressive leads.
• Advanced Oscillators & Filters: Two oscillators per voice offer an array of classic and modern waveforms, while versatile filters—including 12/24 dB low-pass, high-pass, and band-pass—let you shape your sound with precision.
• Unique Modulation Capabilities: The Nord Lead 4 features an intuitive modulation section with LFOs, envelopes, and a modulation matrix, allowing for endless sonic possibilities.
• Performance Controls: Morph, Impulse Morph, and Pitch Stick functions enable real-time sound manipulation, empowering you to deliver expressive and dynamic performances.
• Dedicated Effects Per Slot: Add reverb, delay, overdrive, and more to individual slots, giving your compositions depth and polish.
• Compact, Road-Ready Design: Lightweight and built with Nord’s renowned durability, the Nord Lead 4 is ideal for both studio use and touring musicians.

Why Choose the Nord Lead 4?

The Nord Lead 4 is more than just a synthesizer—it’s a creative tool designed to expand your sonic horizons. Its intuitive interface ensures you stay focused on your music, while its robust features provide the depth and flexibility needed for professional sound design. Whether you're experimenting in the studio or commanding the stage, the Nord Lead 4 delivers powerful performance and pristine sound quality that inspire every step of your musical journey.

Unlock your creativity with the Nord Lead 4 Synthesizer—the ultimate blend of innovation, versatility, and control.

GENERAL FEATURES
49-key velocity sensitive keyboard with octave shift buttons, +/-2 octaves.
20 voices, 4 part multitimbral.
3 momentary Impulse Morph Buttons, 7 combinations.
Keyboard Split with 2 slots for the upper and lower sections.
Modulation Wheel (keyboard version only).
Pitch Stick with no dead zone at zero crossing (keyboard version only).
Programmable Pitch bend range, up to +/- 4 octaves
Separate up/down bend range: -12 or -24 semitones, + 2 semitones
1 pedal input for sustain.
1 pedal input for expression pedal.

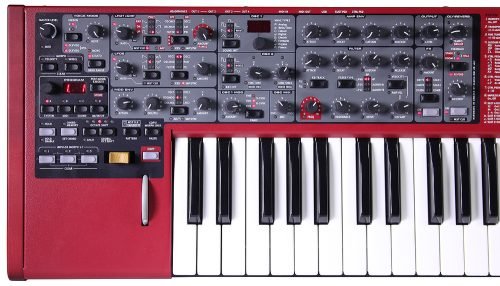

USER INTERFACE
3 character LED display, 29 knobs and 20+ buttons for program and performance editing.

OSCILLATOR SECTION
OSC 1 generating sine, triangle, sawtooth, fixed and modulateable pulse waveforms and 128 wavetables.
OSC 2 generating triangle, sawtooth or fixed and modulateable pulse waveforms or noise.
OSC MOD section with Hard- and Soft sync plus 3 different Frequency Modulations of OSC 1 from OSC 2.

FILTER SECTION
Multi-mode filter with 12 dB (2-pole) low pass, 24 dB (4-pole) and 48 dB (6 pole) low pass, band pass, high pass, Ladder M and Ladder 303 characteristics.
Cut off, Resonance, envelope amount, envelope amount controlled by velocity.
ADSR envelope.
Filter keyboard tracking can be set to off, 1/3, 2/3 or 1/1.
Adjustable Filter Distortion.

MODULATION SECTION
LFO 1 generates a square, triangle or any of 4 different types of saw- and inverted sawtooth waveforms. LFO 1 can be routed to Filter Frequency, Osc Mod, Osc Mix, Osc 2 Pitch, Amplitude and FX section. The modulation amount can be set as positive or negative/inverted. The LFO 1 rate can be synchronized to the Master Clock.
The LFO 1 section is used to control the rate, range and directions for the arpeggiator. Arpeggiator: Range: 1 – 4 octave. Modes: up, down, up/down, random, Poly. The Arpeggio rate can be synchronized to the Master Clock.
LFO 2 generates a square, a regular and inverted sawtooth, LF filtered noise and random staircase waveforms. LFO 2 can be routed to Filter Frequency, Osc Mod, Osc 1 and/or Osc 2 Pitch, Pan and Pulse width. The modulation amount can be set as positive or negative/inverted. The LFO 2 rate can be synchronized to the Master Clock.
Modulation Envelope (Attack, Decay/Release) for Osc Mix, Osc Mod, Osc 1 and/or 2 Pitch, FX section and LFO 2 amount. The modulation amount can be set as positive or negative/inverted. The Modulation Envelope can be manually triggered by the Impulse Morph buttons.
Patterns: the cyclic waveforms of the LFOs can be replaced by a pattern behavior. There are 128 different patterns, grouped in 6 different styles.

AMPLIFIER SECTION
ADSR envelope, velocity control on/off, gain control.

PERFORMANCE SECTION
Voice modes: Poly, Legato with portamento, Mono, True Unison 1, 2 & 3.
Four program slots for layering possibilities.

EFFECTS
FX section with continuous Drive/Modulation control. Crush, Drive, 2 different Talk effects, Compressor and Comb Filter.
Selectable Delay or Reverb. Delay times at up to 1400 ms can be manually set or synchronized to the Master Clock. Reverb has three algorithms, Room, Stage and Hall with adjustable brightness.

MEMORY
Programs (single sounds): 4 x 99 locations
Performances (multi sounds): 99 locations

AUDIO OUT
4 outputs. Each slot can be assigned to its own output.
Headphones output.
High resolution low noise 24 bit DACs.

MIDI FEATURES
All control knobs and switches send and receive control change messages.
System exclusive bulk dumps. One program or all programs.
Master Clock will sync to incoming MIDI clock.
Soft Thru

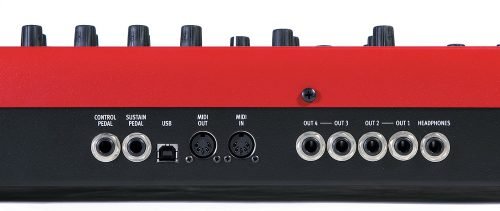

CONNECTIONS
4 Line Level Audio Outputs – ¼”, 6,35 mm jacks, unbalanced
Stereo Headphone Output – ¼”, 6,35 mm stereo jack
Sustain Pedal – ¼”, 6,35 mm jack. Use a momentary pedal, like e.g., Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
Control Pedal – ¼”, 6,35 mm TRS stereo jack. Use a Yamaha FC-7, Roland EV-7, Roland EV-5, Korg EXP2 or Korg XVP10.
USB connector with MIDI capabilities
MIDI In & Out – 5 pin DIN connectors

INCLUDED ACCESSORIES
User Manual
Power Cord with IEC C14 connector
Nord CD ROM with Nord Sound Manager

DIMENSIONS
Nord Lead 4: 864 x 94 x 272 mm (34.0 x 3.7 x 10.7″)

WEIGHT
Nord Lead 4: 5.3 kg (11.7 lbs)
