Neural DSP Nano Cortex Digital Effects Processor Profiling Pedal

Neural DSP Nano Cortex Digital Effects Processor/Profiling Pedal

The Neural DSP Nano Cortex Digital Effects Processor/Profiling Pedal marks a milestone in amp and effect processing, distilling the industry-leading sound of the Quad Cortex into a pedal that fits in the palm of your hand. Weighing in at under two pounds, this comprehensive guitar and bass processor pedal packs 2GHz of dedicated DSP from its SHARC architecture to provide you with nearly the same studio-level sounds as its larger sibling. Of course, the Nano Cortex also features Neural DSP’s signature Neural Capture technology and an XLR combo jack to create spot-on digital copies of your existing gear — you can also download countless user- and artist-created captures by wirelessly connecting via Bluetooth to the Cortex Cloud app, as the Nano Cortex offers up to 256 Neural Capture slots, 256 Custom IRs slots, and 64 preset slots to swap between. Once you’ve decked your Nano Cortex out with the amps, cabs, and effects of your dreams, the Nano Cortex supplies a straightforward and stompbox-like workflow thanks to its dual encoder footswitches, which can be turned like a knob to navigate 25 Neural Capture slots on the left footswitch and five of your favorite IRs on the right footswitch. Moreover, a quick stomp on these switches gives you access to four full-fledged rig presets with gapless switching. You also get a flexible effects section and tactile knob-per-function global controls. Wrap it all up with USB-C audio interface functionality, an EXP/MIDI input, and enhanced editing/control features via the Cortex Cloud app, and the Nano Cortex represents a truly game-changing revolution in the world of pedal-based processing.

Capture your entire collection

Just like the full-size Quad Cortex, the Nano Cortex boasts Neural DSP’s lauded Neural Capture technology, providing you with the power to create an exacting sonic clone of any amplifier, cabinet, or drive pedal and take it on the road with you. Switch your Nano Cortex to Capture Mode, plug your drive pedal or microphone into the device’s XLR combo jack, set your levels using the handy LED meters, and the Nano Cortex captures every harmonic detail and tonal nuance with immaculate authenticity. You also get a boost switch with +26dB on tap to handle gain-hungry microphones. From start to finish, the process takes a matter of minutes, allowing you to digitize your entire amplifier and effect arsenal and carry it around in one convenient box.

Ultra-portable pedal-sized form factor

Clocking in at under 1.5 lbs. and only slightly larger than a standard stompbox or two, the Nano Cortex represents a revolution in the world of amp and effect processing. This ultra-portable processor is easily slapped onto a pedalboard or tossed into a gig bag, sporting the same industry-leading tones as the Quad Cortex thanks to its 2GHz of dedicated DSP courtesy of its SHARC architecture. Whether you’re a veteran touring musician looking to lighten up your stage rig or simply after a powerful and portable all-in-one rig solution for your practice sessions, the Nano Cortex does it all with supremely authentic sound.

A powerhouse of sonic versatility

From classic arena-rock crunch to effect-laden soundscapes to pure, lush cleans, the Nano Cortex is ready to excel in any musical application thanks to its studio-grade sound and flexible preset slots. This device stores up to 256 Neural Captures, 256 custom IRs, and 64 preset slots, with the ability to assign four presets to the Nano Cortex’s dual footswitches (two presets per footswitch with gapless preset switching).

Shape your sound with seven device blocks

The Nano Cortex offers a fixed audio path of seven device blocks to sculpt your perfect signal chain. Plus, any of the blocks can be bypassed to allow for a variety of setup options. The path is comprised of two pre-FX slots (including Adaptive Gate and Transpose), a Neural Capture Block, an IR Loader with cabinet simulation, and three post-FX slots (Chorus, Analog Delay, and Mind Hall reverb)

Comprehensive Cortex Cloud companion app

Nano Cortex’s companion Cortex Cloud application unlocks nearly endless sonic possibilities, giving you access to thousands of Neural Captures from legendary artists and the Neural DSP community — all accessed wirelessly using Nano Cortex’s onboard Bluetooth capabilities. This immensely powerful app makes it a breeze to set your Neural Capture, effect, and IR banks, and it also supplies seriously in-depth editing options for the die-hard tone hounds in the audience, including custom microphone models, mic positions, and EQ options for your chosen IRs. What’s more, the Cortex Cloud app can also be used to remotely control the Nano Cortex’s standard parameters, update firmware, and more.

Straightforward stompbox-style workflow

Once your preferred sounds are loaded in using the Cortex Cloud app, the Nano Cortex is expertly engineered to provide a straightforward and intuitive workflow. The left encoder footswitch and bank button give you access to 25 total Neural Capture slots to swap between, while the right encoder knob switches between five onboard IR selections.

Furthermore, the FX button and Amount knob grants five distinct effects that can be used both separately and in tandem for enveloping sonic landscapes. Finally, the Nano Cortex is finished off with a set of global knob-per-function controls to shape out your signal with a decidedly stompbox-like simplicity, including Gain, Level, and a 3-band EQ.

Ample I/O and utility features

Neural DSP’s Nano Cortex is a champion of the stage, the studio, and the practice room, thanks to its extensive I/O and utility appointments. You get a standard instrument input, stereo outputs, and an EXP/MIDI jack to take enhanced control. In addition, the Nano Cortex’s USB-C input allows the Nano Cortex to shine in the studio as an audio interface, giving you plug-and-play professional-grade guitar tones with nothing more than a couple of cables. To top it all off, the Nano Cortex serves as a superb tool for silent jamming thanks to its 3.5mm headphone jack and dedicated headphone volume control.

Neural DSP Nano Cortex Features:

• An immensely powerful pedal-based processor, packing the might of the Quad Cortex down into a palm-sized package
• 2GHz of DSP courtesy of SHARC architecture delivers the industry-leading sonic authenticity of the full-size Quad Cortex
• Ultra-compact design can easily be tossed into a gig bag or placed on a pedalboard
• Neural Capture technology and XLR combo jack allow you to capture your favorite amps, cabs, and drive pedals and save them as digital copies
• 7 fixed device blocks: 2 pre-FX blocks (Adaptive Gate and Transpose), 3 post-FX blocks (Chorus, Analog Delay, and Mind Hall Reverb), a Neural Capture block, and an IR loader
• 2 modes: Capture Mode for capturing your gear and Performance Mode for when you’re ready to play or record
• Any device block can be bypassed, allowing a variety of configurations
• +26dB boost on combo input to aid you in capturing your gear
• Saves up 256 Neural Captures, 256 IRs, and 64 full-fledged presets
• Global 3-band EQ, Gain, and Level controls
• 5 effect slots can be used solo or in tandem
• 2 encoder footswitches double in function, allowing you to select captures/IRs with the twist of the knob, while a stomp switches between 4 total presets (2 on each switch)
• Bluetooth functionality, allowing you to connect to the companion Cortex Cloud app to access and share countless user-created and artist-crafted captures
• Cortex Cloud app also provides enhanced editing capabilities, updates firmware, and can be used to remotely control many of the device’s standard functions
• USB-C allows for comprehensive 24-bit, 48kHz audio interface functionality with low latency; USB-C cables included
• Onboard tuner to ensure you’re always pitch-perfect

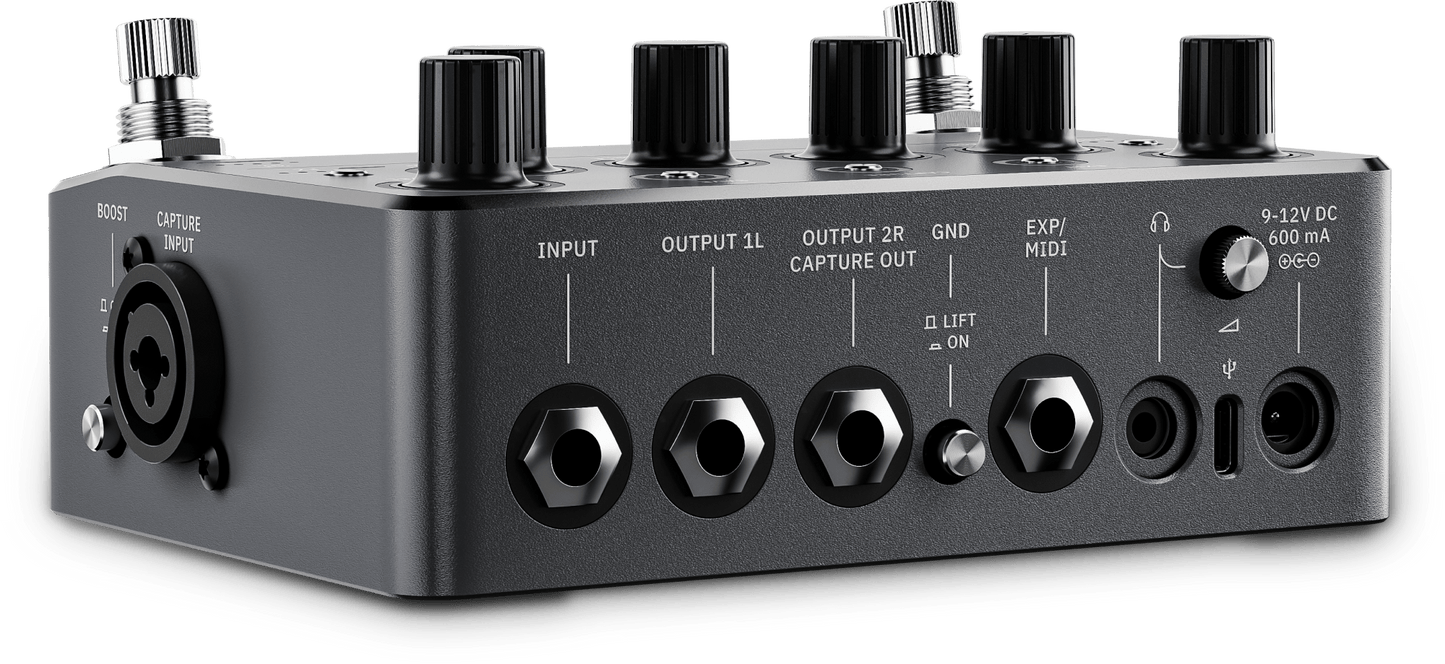

• Versatile I/O consists of an instrument input, stereo outputs, EXP/MIDI jack, a headphone jack with a dedicated volume knob
• Ground lift button to cut down on unwanted noise
• Heavy-duty metal enclosure and top-quality components ensure road-ready durability

Technical Specifications
*  Pedal Type:Multi-FX, Amp Modeling, Digital Amp Capture

* Analog/Digital:Digital

*  Presets:64 x User

*  Number of Effects:2 x pre-FX blocks (Gate, Transpose), 3 x post-FX blocks (Chorus, Delay, Reverb)

*  Impulse Response:25 x Factory Neural Captures, 256 x User Neural Captures, 10 x Factory IRs, 256 x User IRs

*  Inputs:1 x 1/4″ TRS (instrument), 1 x XLR-1/4″ (Capture Out)

*  Outputs:2 x 1/4″ TRS (L, R/Capture out)

*  MIDI I/O:1 x 1/4″ TRS Type A (In, Expression)

*  USB:1 x USB-C (24-bit, 48kHz Audio Interface, Midi)

*  Bluetooth :Yes, App control

*  Headphones:1 x 1/8″ TRS

*  Expression Control:Yes, External

*  Bypass Switching:Buffered Bypass

*  Software:Cortex Cloud app

*  OS Requirements – Mac:iOS 11.0 or later

*  OS Requirements – PC:Android 5 or later

*  Power Source:9-12V DC 600mA power supply (sold separately), USB Bus power (5V, 1.5A)
