FGN EXPERT ILIAD EIL-EW1-HS-RM
FGN EXPERT ILIAD EIL-EW1-HS-RM
Couldn't load pickup availability
Specification
| Construction | Bolt-on Neck |
|---|---|
| Body | Spalted Maple Top / Ash Back |
| Neck | Roasted Maple |
| Fingerboard | Roasted Maple |
| Scale | 25.5" (648mm) |
| Frets | 22F Jumbo Stainless Steel C.F.S. / Xpert Fret Edge Treatment |
| Tuners | GOTOH® SG381-07 MG-T |
| Bridge | GOTOH® GTC201 |
| Tailpiece | - |
| Hardware Color | Gold |
| Pickup (Neck) | XPERT-H2 |
| Pickup (Middle) | - |
| Pickup (Bridge) | FGN52T-HOT-R |
| Controls | 1Volume, 1Tone, 3Way Lever SW, 1Coil Tap Mini SW |
| Body Finish | Gloss |
| Strings | D'Addario EXL110 (.010-.046) |
| Others | - |
| Accessories | Original Hard Case, Fret Guard |
| Color | HCB (Hojicha Burst) |
Features
Circle Fretting System (C.F.S.)
All FGN guitars and basses come with a unique Circle Fretting System (C.F.S.). It was created by FGN based on an idea to offer better pitch and articulation than conventional guitars and basses. All frets are installed on fingerboard in slightly curved shape, so that every string crosses all the frets in 90 degrees, i.e. to offer a minimum contact of string on a fret, and it makes the scale length of every string even while it actually varies on conventional fretting. The C.F.S. is a solution of fretting on a traditional guitar and bass and it offers clearer articulation and tones which give dimension when you play a cord and also cut through the mix when you play single notes.
Compound radius fingerboard
The compound radius fingerboard has smaller (rounder) radius towards nut while larger (flatter) radius towards neck end i.e. similar to a shape of a cone.This allows for much easier chord playing at lower frets while having less stress, especially when bending strings at higher registers.

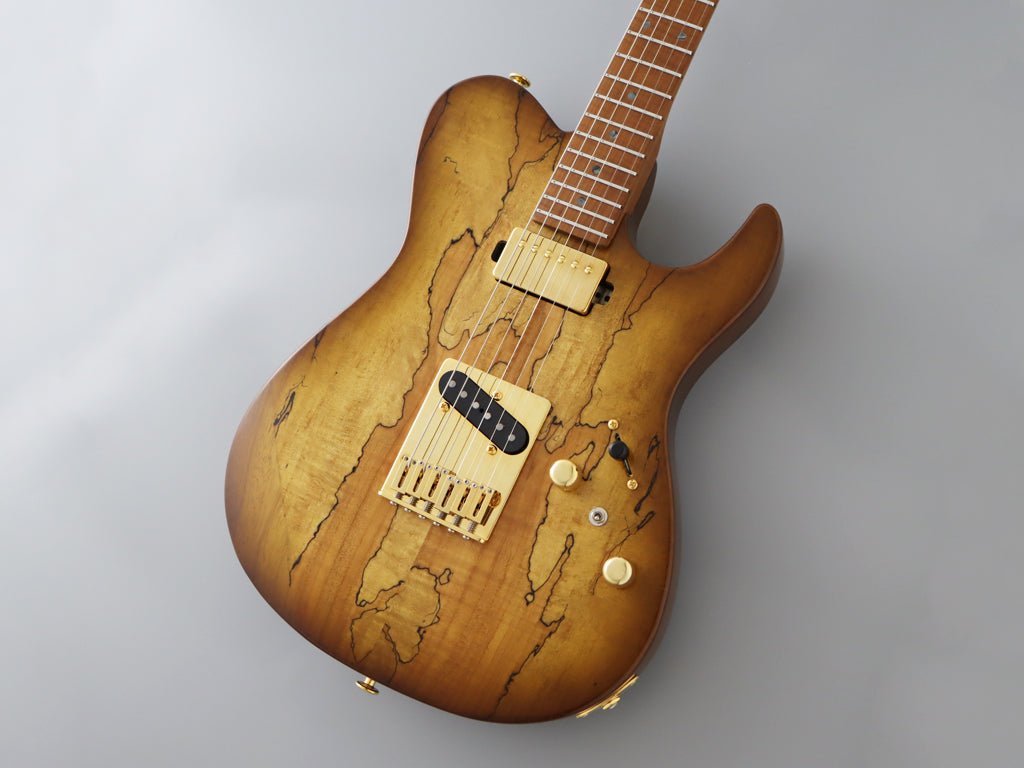

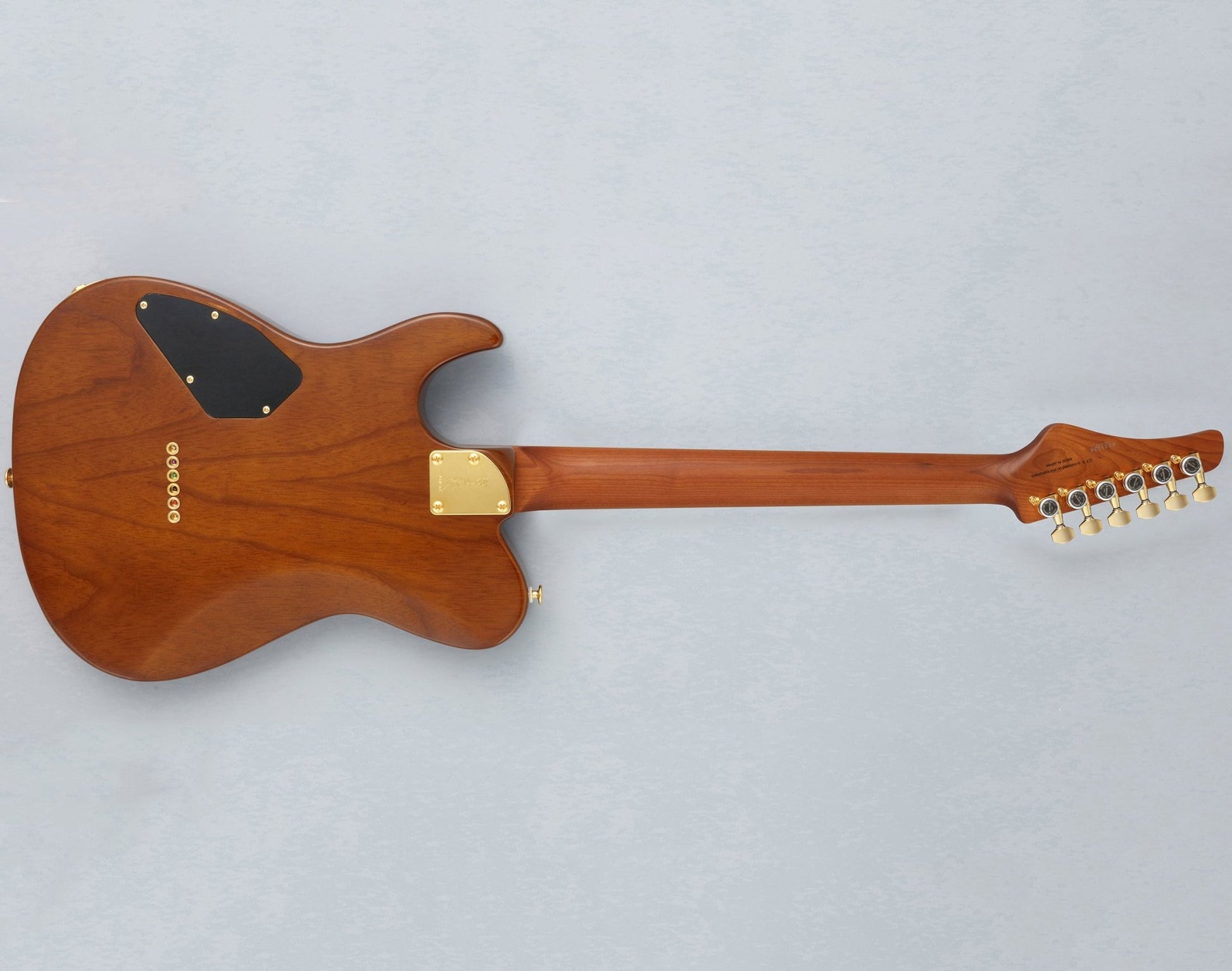

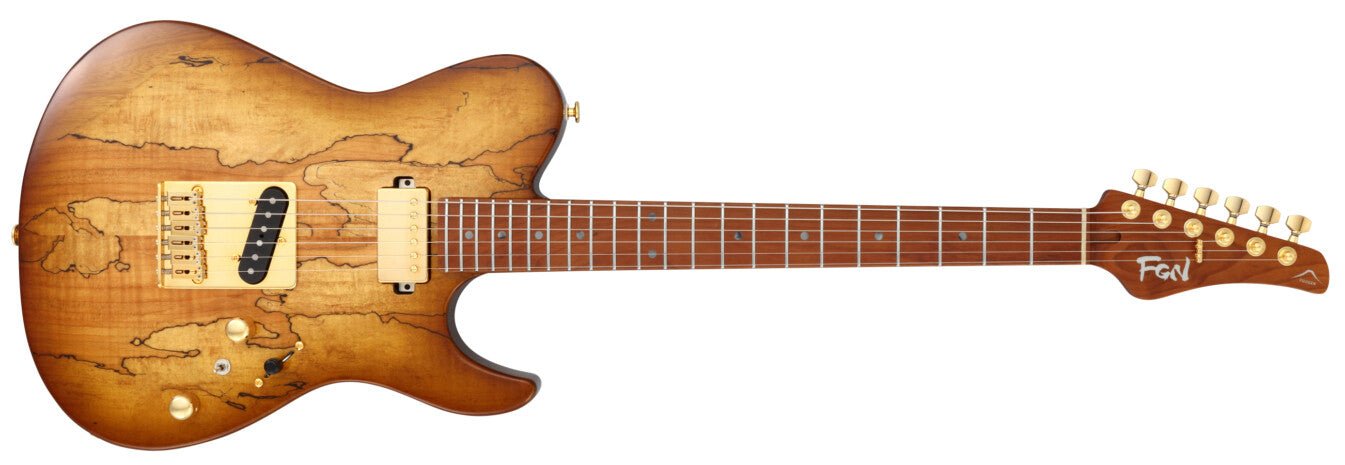

Roasted maple neck & fingerboard bolted on Spalted Maple top on Ash body.
Rolled edge fingerboard with Jumbo Stainless frets. Luminous side dots to glow on the dark stage.
FGN Three-String Tree and GOTOH®Magnum Lock tuners.

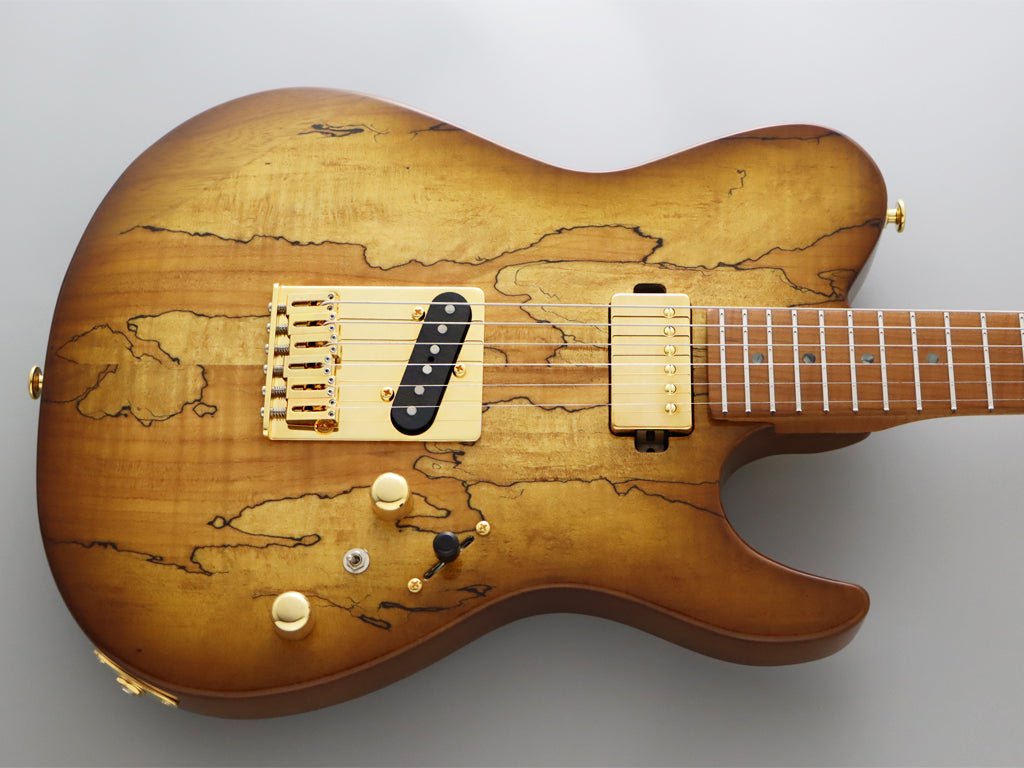

FGN XPERT Humbucker & 52T-HOT Single coil pickup with 3-way lever & Coil-tap mini switch and GOTOH®6-saddle bridge.
