Graphtech TUSQ XL
1Vol,1Tone,3Way PU Selector SW,Coil Tap SW
- Width at Nut
Gig Bag, Allen Wrench, COA

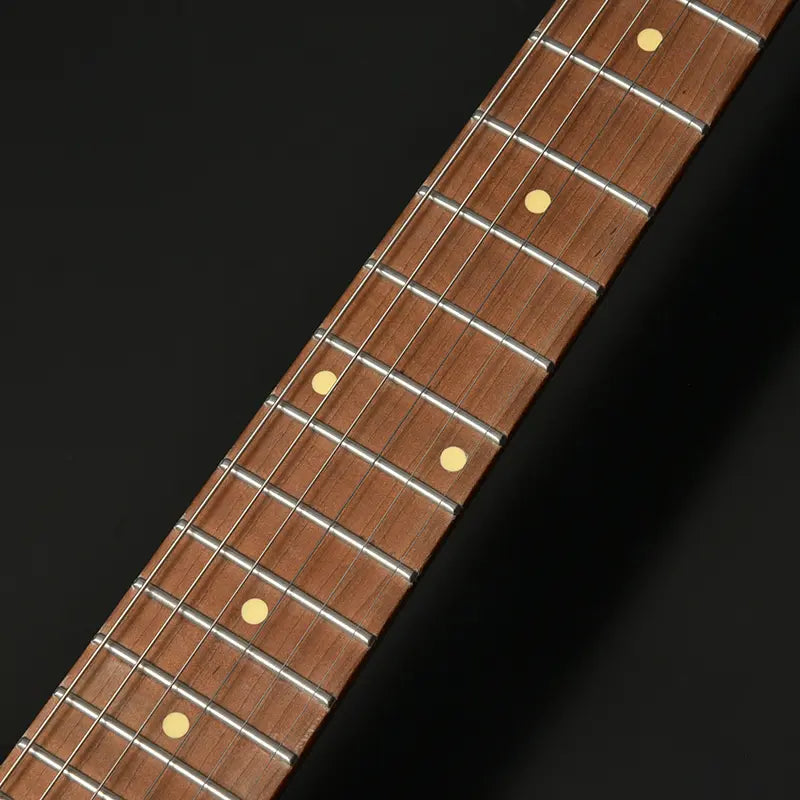

24F specification and stainless steel jumbo frets for technical play

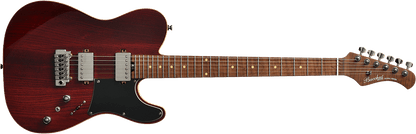

“As the name suggests, the TACTICS24 has 24 frets.
The frets are made of stainless steel jumbo frets. These frets are harder than strings, so there is less deterioration over years of use.

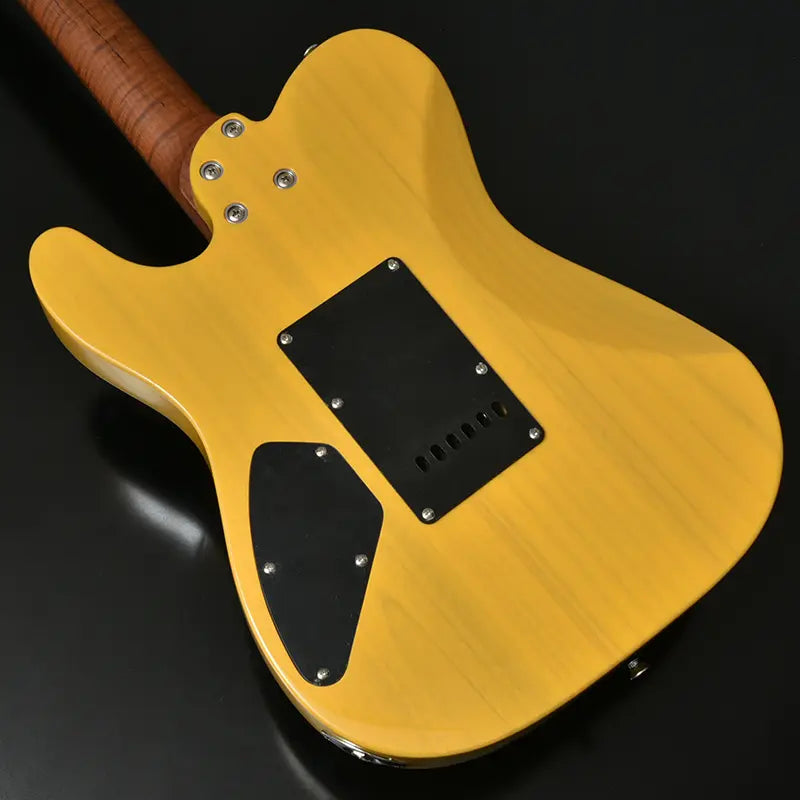

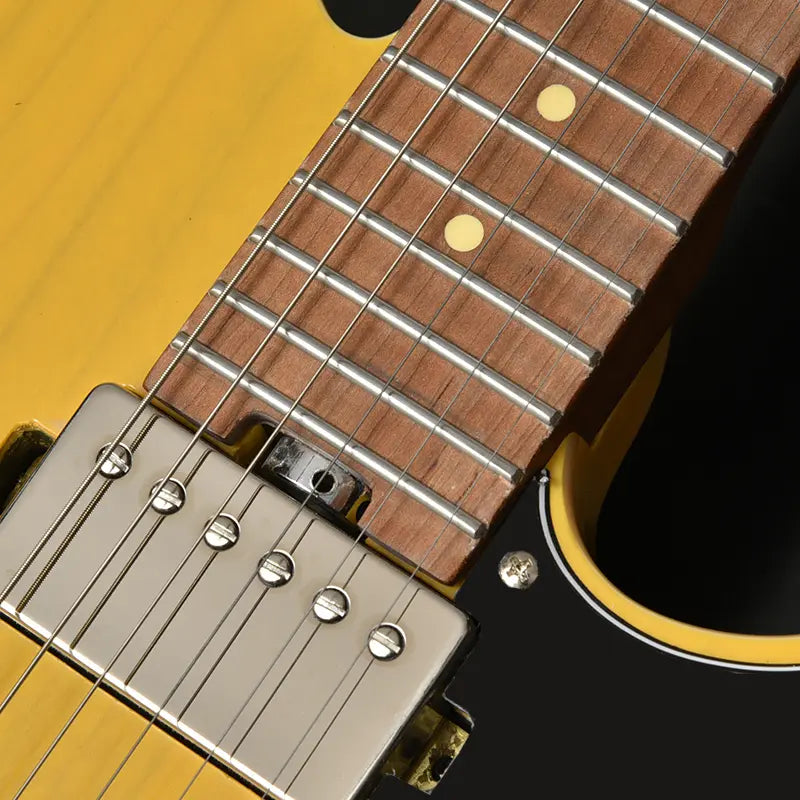

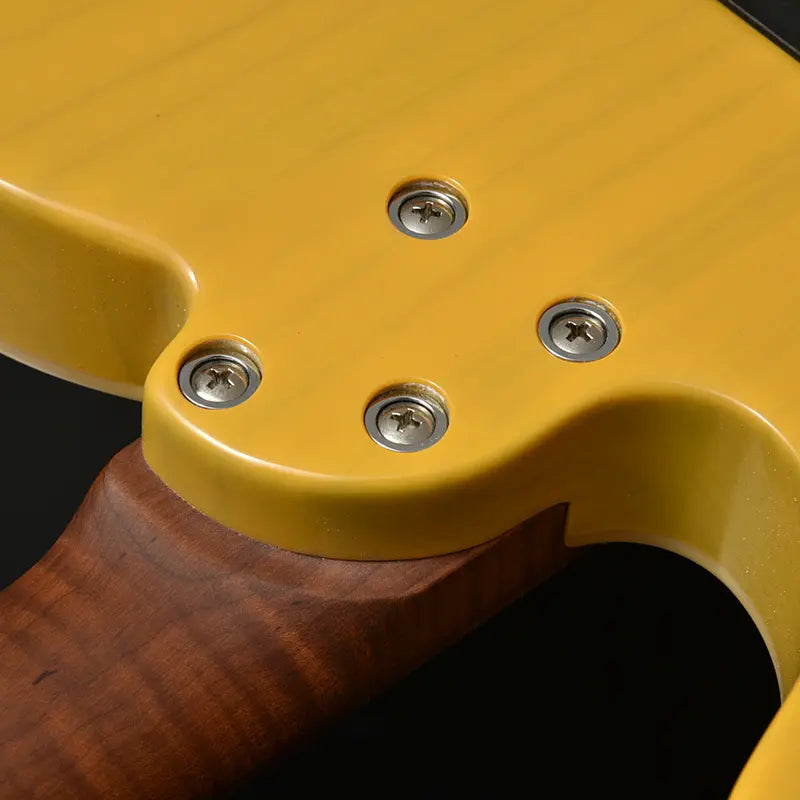

Heel cut processing to support high fret play
The neck joint has a heel cut applied to it.
The joint plate has been eliminated to create a natural shape that fits your hand and does not feel uncomfortable when playing at the high frets.

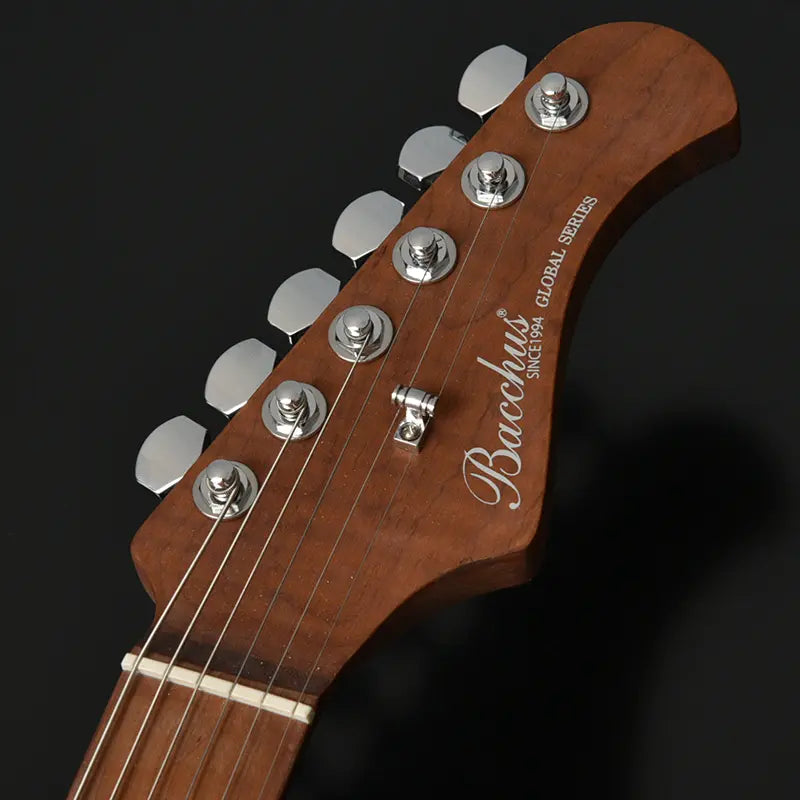

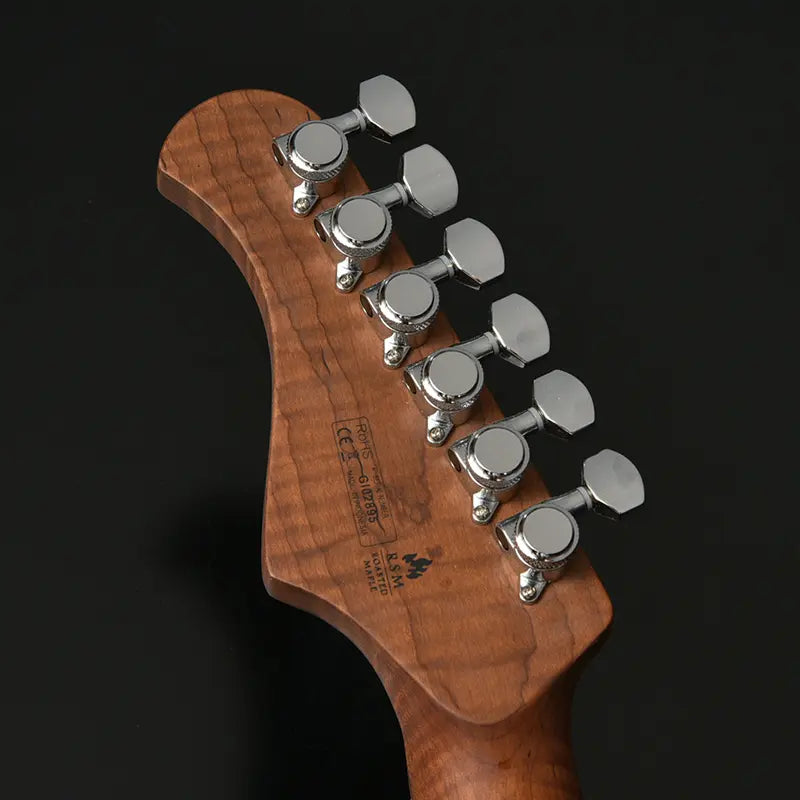

The Locking Tuner is equipped with a mechanism where the rod in the string post rises when the wheel on the back of the machinehead is turned, and locks into place when the string is pinched.
By reducing the number of windings on the string post, the tuning stability is dramatically increased.
The mechanism also has the advantage of reducing the amount of time needed to change strings and reducing tension shake, since it does not require strings to be as wound.

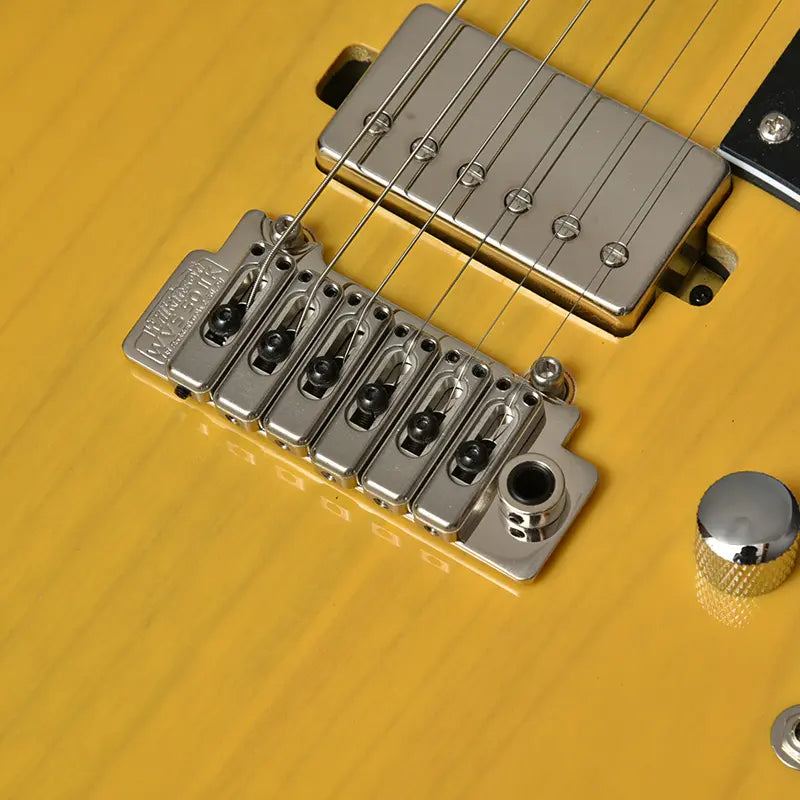

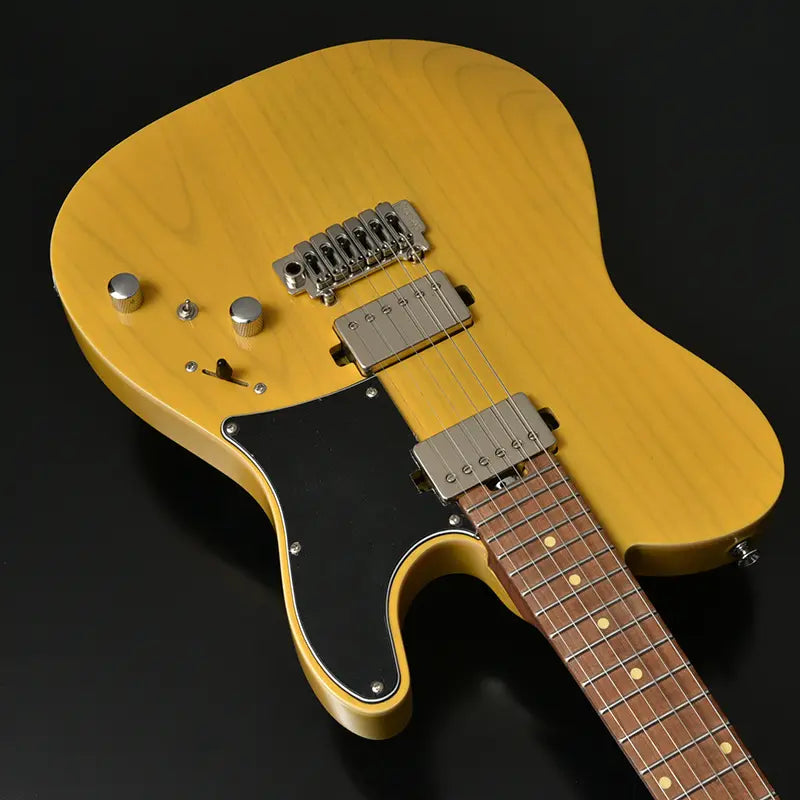

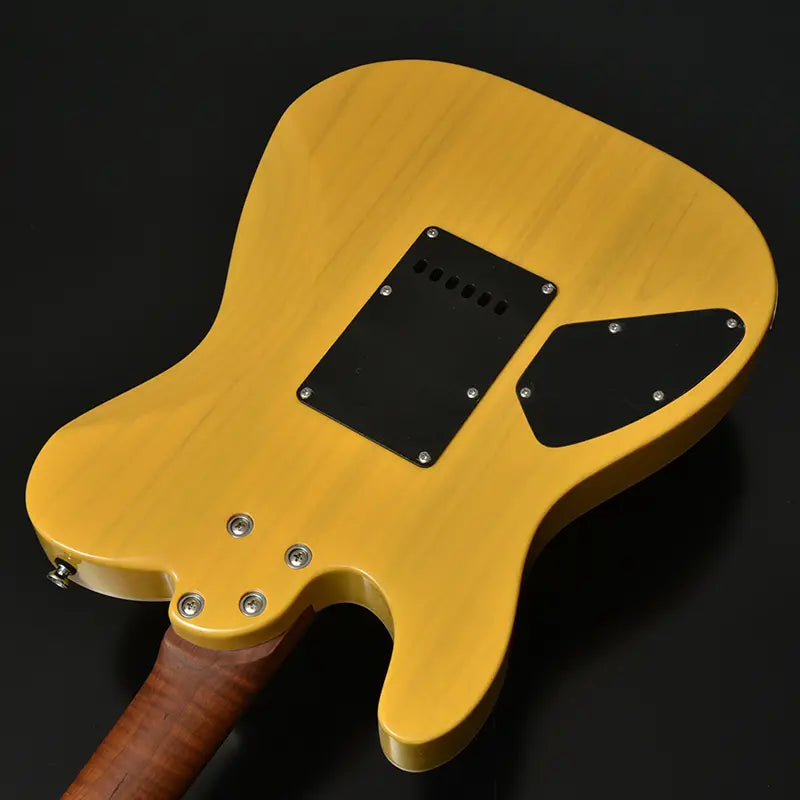

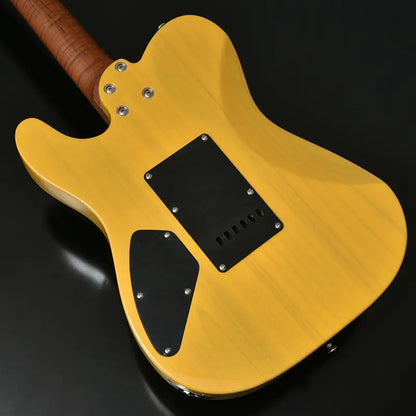

Wilkinson 2-stud tremolo unit
A standard tremolo unit uses six screws to support the bridge, but this model uses the Wilkinson/WVS50IIK tremolo unit, which has two fulcrum studs on each side.
The tremolo unit has a wide range of motion during arming play, with a down motion of approximately 1.25 notes and an up motion of approximately 1 note.
In addition, even if the tension fluctuates during arming, only two points are loaded, which makes tuning more stable than with a tremolo unit supported by six points.
TUSQ nut for maximum sound output
The nut is the world standard “Graphtech TUSQ nut”, which is used by top class luthiers and manufacturers.
The TUSQ nut is designed to transmit the vibrations of the strings from the body to the bridge without wasting energy, and to produce a rich sound from highs to lows and even overtones.
The TUSQ nut also allows the strings to slide easily, which contributes to the stability of tuning.。

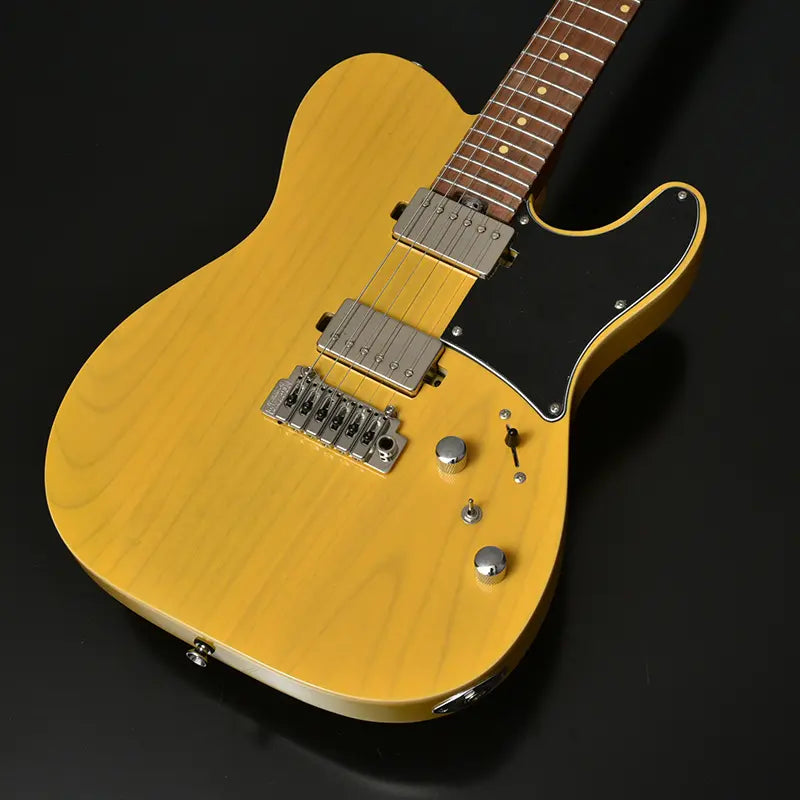

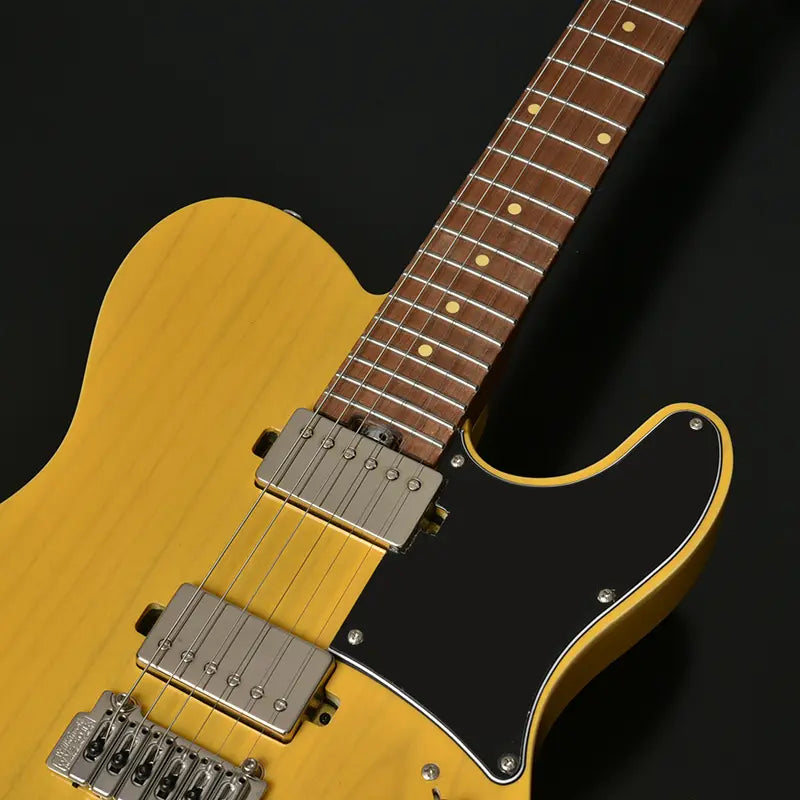

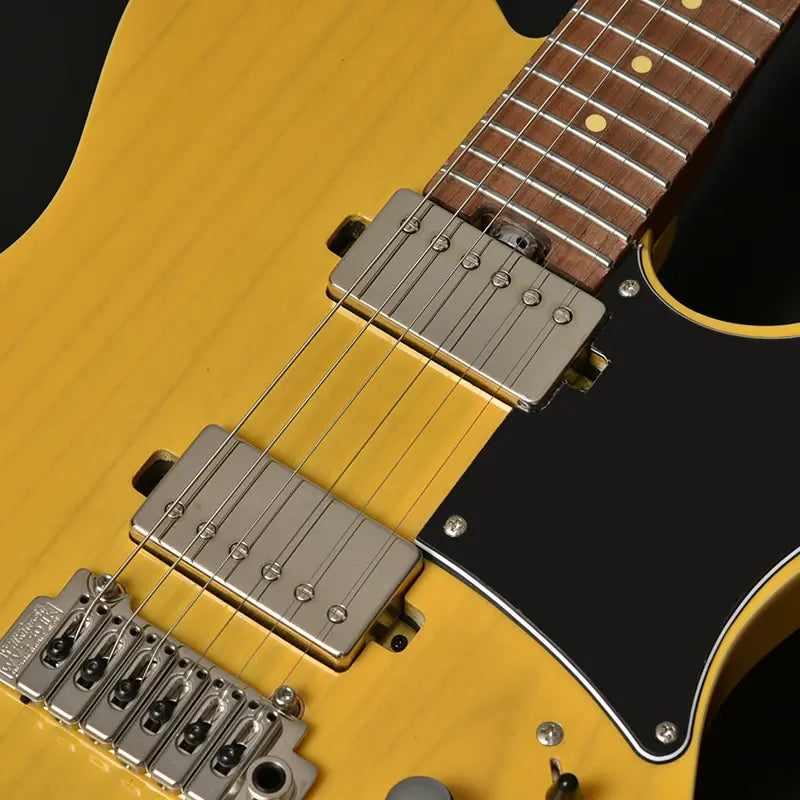

2 humbuckers + coil tap switch
Equipped with two humbuckers for the pickups.
It is characterized by a round and powerful sound that is closer to the bass, and can be expected to produce a sound with a strong presence even when clean.
In addition, the humbuckers have a noise-resistant structure, which makes them a perfect match for heavy distortions such as distortion and metal.
This is a specification that can be used in any genre.

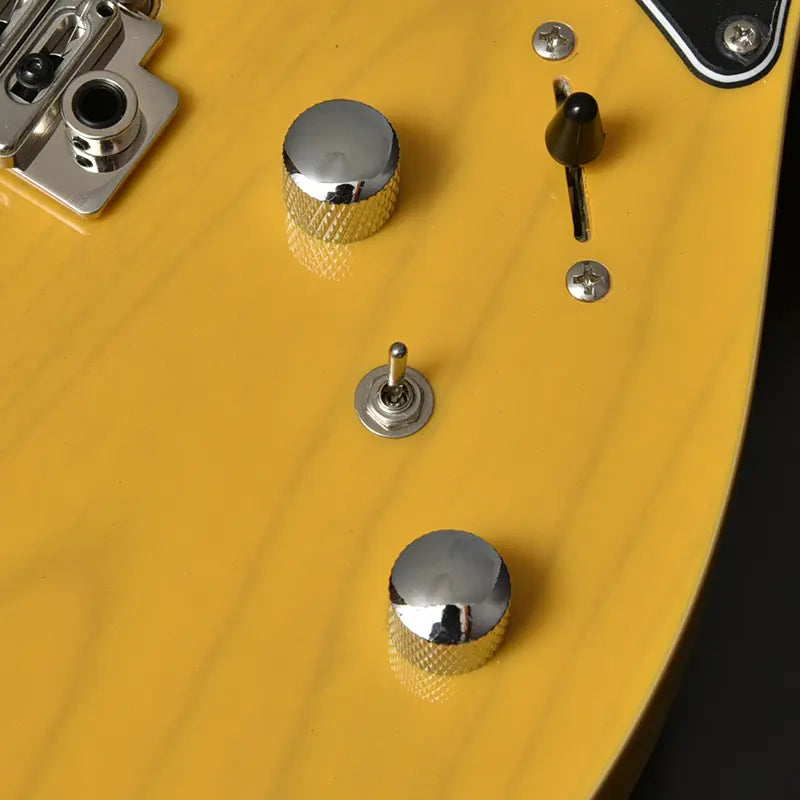

A coil tap switch is a switch that cancels the signal from one coil of a humbucker pickup, which consists of two coils in a row, and allows only the signal from the other coil to be transmitted.
This allows you to have the sound of only one coil, i.e., like a single coil.
As mentioned above, humbuckers are characterized by a round and powerful sound that is closer to the bass, but by using the coil tap switch, it is possible to produce a crisp and delicate sound just like a single coil.
